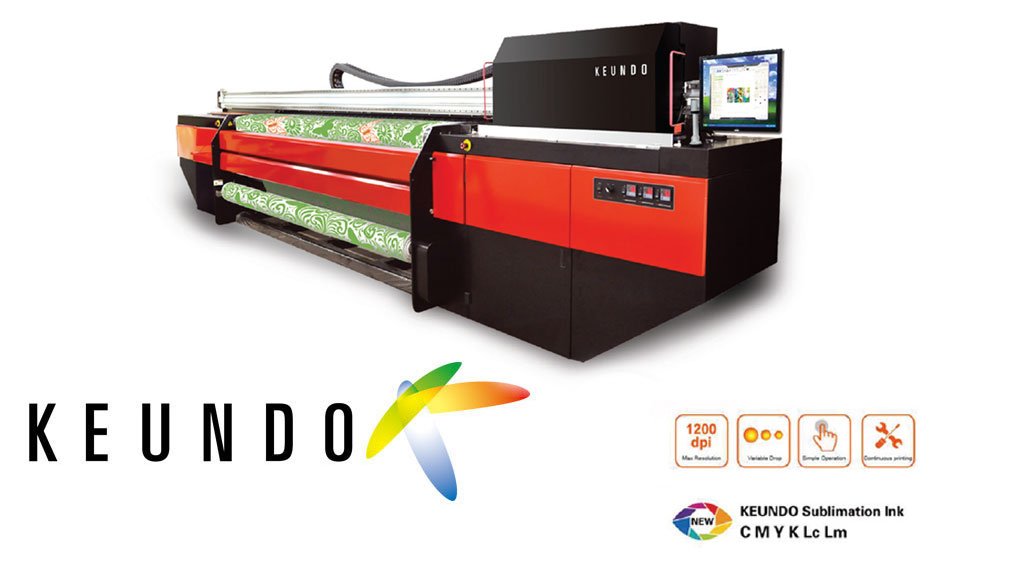

The new SupraQ 3200-TX12 package offers the digital solution to all kind of signage textile industry. Already proven top quality Keundo SupraQ 3200-TX12 printer combined with fixation (color activator) will enable an user to print directly onto fabric or paper to transfer using aqueous dye sublimation ink.
Features:
1. Carriage System: Robust structure design to secure stable movement and performance.
2. Pneumatic System: It gives stable pneumatic pressure to operate related devices.
3. Main Degassing Unit: It removes mico bubbles in ink while transfer to main ink tank.
4. Pinch Roll: It gives stable media feeding by pressing media surface equally.
5. Capping System: Head capping system for maintenance.
6. Boards: R&D team of Keundo has developed high-performance boards.
7. Gutter Jetting System: Make nozzle spit to prevent from nozzle clog.
8. Carriage Safety Bar: When touching the bar, carriage stops immediately.
9. Dancer Bar: It can maintain constant media tension to secure stable feeding.
10. Air-shaft Roll: Adjust Air-shaft roll for install convenience.
11. Pre-heater; Adjust two pre-heaters for better efficiency.
12. Auto Cleaning System: Clean head and head plate automatically by program.
Specifications:
HEAD: SG-1024/27 AAA, Robust and repairable construction, 20~30 picoliter nominal drop size
INKS: Water based Sublimation, 6 colors (C, M, Y, K, Lc, Lm)
INK CAPACITY: Main ink pail or Main ink Carriage and Reservoir tank: 200ml
MATERIAL TYPE: Pre-coated Dye-Sublimation Polyester, Mesh polyester, Transfer paper (In-Direct) and etc.
MATERIAL SIZE: Width: 3.2 Meter, Roll Diameter: 400mm
PRINTING METHOD: Roll to Roll
PRINT SPEED: Production mode (170sqm/h) Quality mode (114sqm/h) High quality mode (84sqm/h)
RESOLUTION: 400 dpi
MAIN PROCESSOR & S/W: Intel I 3 & Windows OS
RIP: Ergosoft, ONYX, ColorGate & etc.
POWER: AC220~240V, Single Phase, 50/60Hz, 40Amp
DIMENSION & WEIGHT: 7,000(w) x 1,150(d) x 1,790(h) (Unit: mm) / 2,000Kg
